FL-8A Portable Fault Locator

The FL-8A is a specialized, portable, fault locator for applications where power is not readily available such as offshore oil drilling.

FL-8 laid down and closed 2
FL-8 laid down and closed 2

FL-8 open with probes
FL-8 open with probes

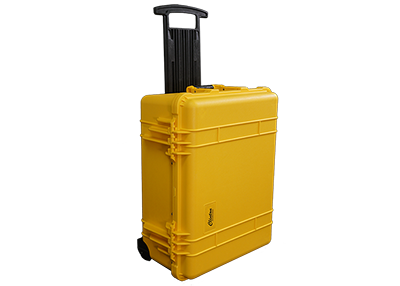

FL-8 standing up
FL-8 standing up

FL-8 laid down and closed 2
FL-8 laid down and closed 2

1/3

Downloads & Questions

​

We often provide our spec sheets and manuals in multiple languages. Contact us to let us know what you need, and we will get it to you!

​

Technical Specifications

​

Major Features:

  • Compact

  • Ruggedly Designed

  • Battery Operated

​

PARAMETER

VALUE

Test Voltage Range

500v-8kV

Test Frequency

DC

Voltage Display

6-inch backlit color TFT touch screen

​Accuracy 2% of reading

Fault Indication

Touch Screen Display

Fault Definitions

Open - A condition where a single conductor has no continuity from one end to the other

Metallic Short - Two conductors without insulation or. a conductor and a shield that physically come into contact with one another.

High-Voltage Short - Two conductors or a conductor and a shield which have no insulation between them but do not contact one another.

Battery Power

Ni-MH 24V 5Ah, rechargeable through FL-8A power cord.

Recharge Power

100-240 volta AC, 50/60 Hz 2 amps

Output Power

6mA Maximum

Cable Loop Resistance

Metallic Short - 50 milliohms minimum

High-Voltage Short - 300 milliohms minimum
